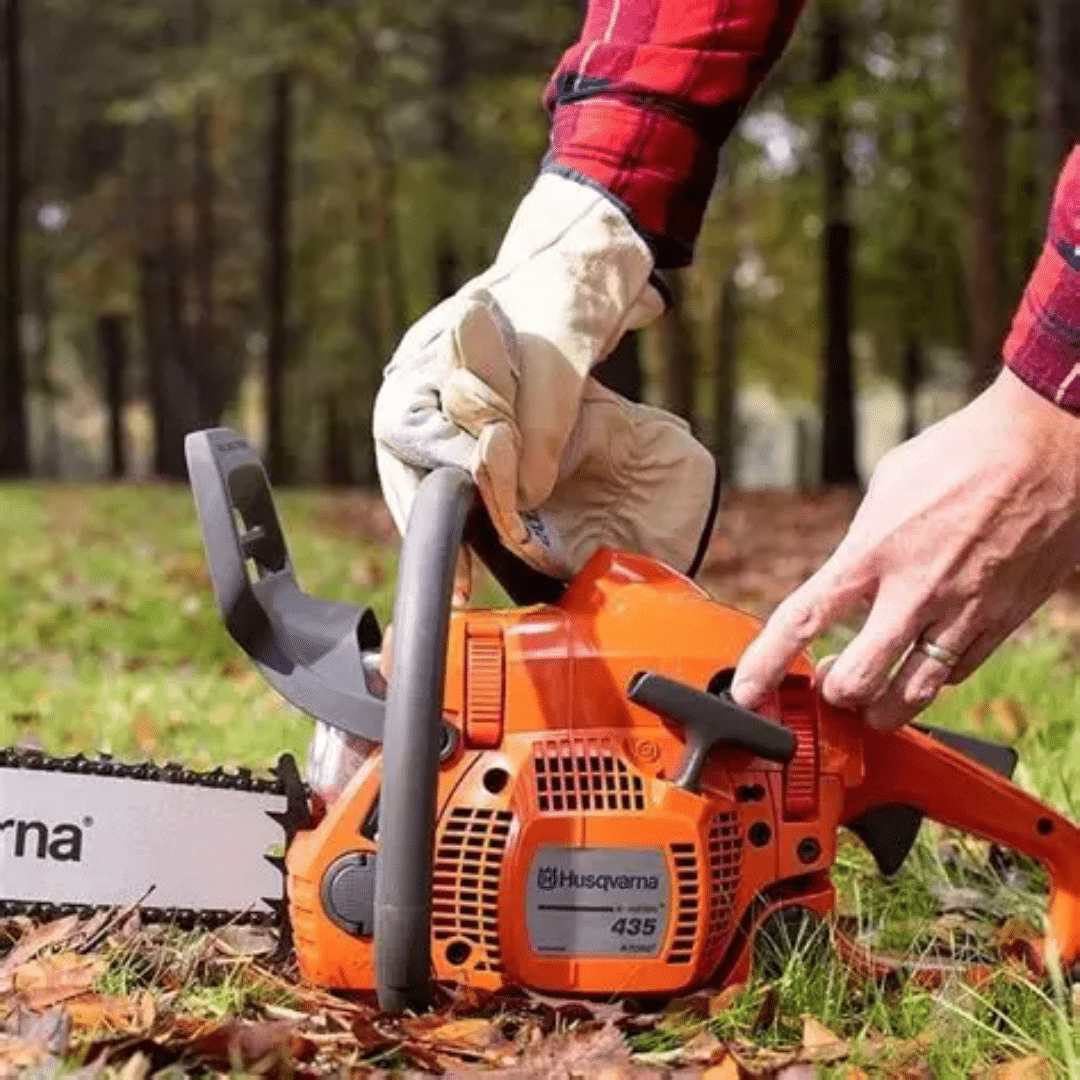

Husqvarna 435 15″ Chainsaw 970559735
The Husqvarna 435 chainsaw is lightweight and easy to maneuvre, ideal for those looking for a domestic chainsaw for the garden or a small amount of land. Husqvarna’s unique Smart Start feature means that operators are required to produce up to 40% less force on the pull cord to start the chainsaws engine. Featuring an X-Torq® petrol chainsaw engine it improves fuel consumption up to 20% and reduces exhaust emission by up to 75% when compared to other saws on the market. Equipped with a fuel pump and Auto return stop switch to make the chainsaw easy to start, it comes with an interchangeable 15″ chainsaw bar as standard.
Features
- Cylinder displacement 40.9 см³
- Weight (excl. cutting equipment) 4.2 kg
- Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
- Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
- Facilitates cleaning and replacement of the air filter.
- Distinct felling marks for better felling precision.
Specifications
- Engine
- Power output 1.6 kW
- Cylinder displacement 40.9 см³
- Maximum power speed 9000 rpm
- Max engine/motor RPM 13000 rpm
- Idling speed 2900 rpm
- Torque, max .2 Nm
- Torque, max. at rpm 6300 rpm
- Clutch engagement speed (±120)4300 rpm
- Fuel consumption 652 g/kWh
- Fuel consumption 1.08 kg/h
- Spark plug Champion RCJ7Y, NGK BPMR7A
- Electrode gap 0.5 mm
- Ignition module air gap 0.3 mm
- Oil pump Product Type Fixed flow
- Oil pump capacity Max 13 ml/min
- Oil pump capacity Min 13 ml/min
- Exhaust emissions (CO2 EU V) 813 g/kWh
- Equipment
- Recommended bar length, max 18 in
- Recommended bar length, min 13 in
- Chain speed at max power 17.3 m/s
- Chain speed at 133% of maximum engine power speed 23 m/s
- Dimensions
- Weight (excl. cutting equipment) 4.2 kg
- Lubricant
- Oil tank volume 0.25 l
- Oil pump Product Type Fixed flow
- Oil pump capacity Max 13 ml/min
- Oil pump capacity Min 13 ml/min
- Sound and Noise
- Sound power level, guaranteed (LWA) 114 dB(A)
- Sound power level, measured 112 dB(A)
- Sound pressure level at operators ear 102 dB(A)
- Vibration
- Equivalent vibration level (ahv, eq) front handle 3.8 m/s²
- Equivalent vibration level (ahv, eq) rear handle 4.2 m/s²
