Description
Petzl Roll Clip A – P74TL
Pulley carabiner, with TRIACT-LOCK locking system can be used to minimise friction on the work rope or to install redirects.
- Facilitates manipulations:
- Key-lock system prevents any accidental snagging of the carabiner when putting the pulley in place

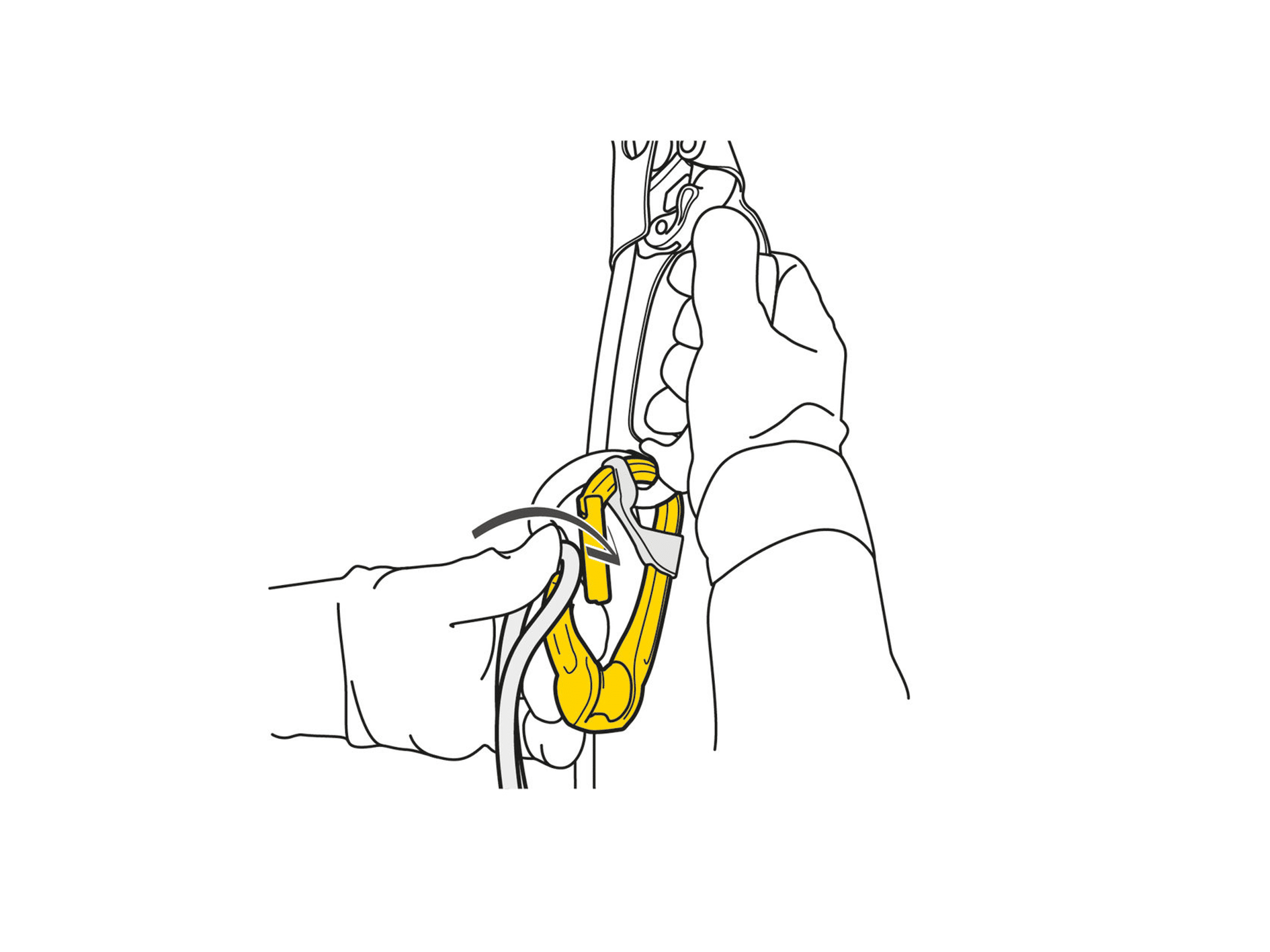

- Gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
- May be used with a CAPTIV positioning bar to favour loading of the carabiner along its major axis and to limit the risk of it flipping
- Sheave mounted on sealed ball bearings for excellent efficiency
- With TRIACT-LOCK locking system: may be used to minimise friction on the work rope while keeping set-ups simple. May also be used to install redirects.
- H profile of carabiner:
- Ensures an improved strength-to-weight ratio
- Protects markings from abrasion
Specifications:
- Gate Opening – 22 mm
- Weight – 115 g
- Standards – CE EN 362, CE EN 12278, EAC
- Material(s): aluminium
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
