Description

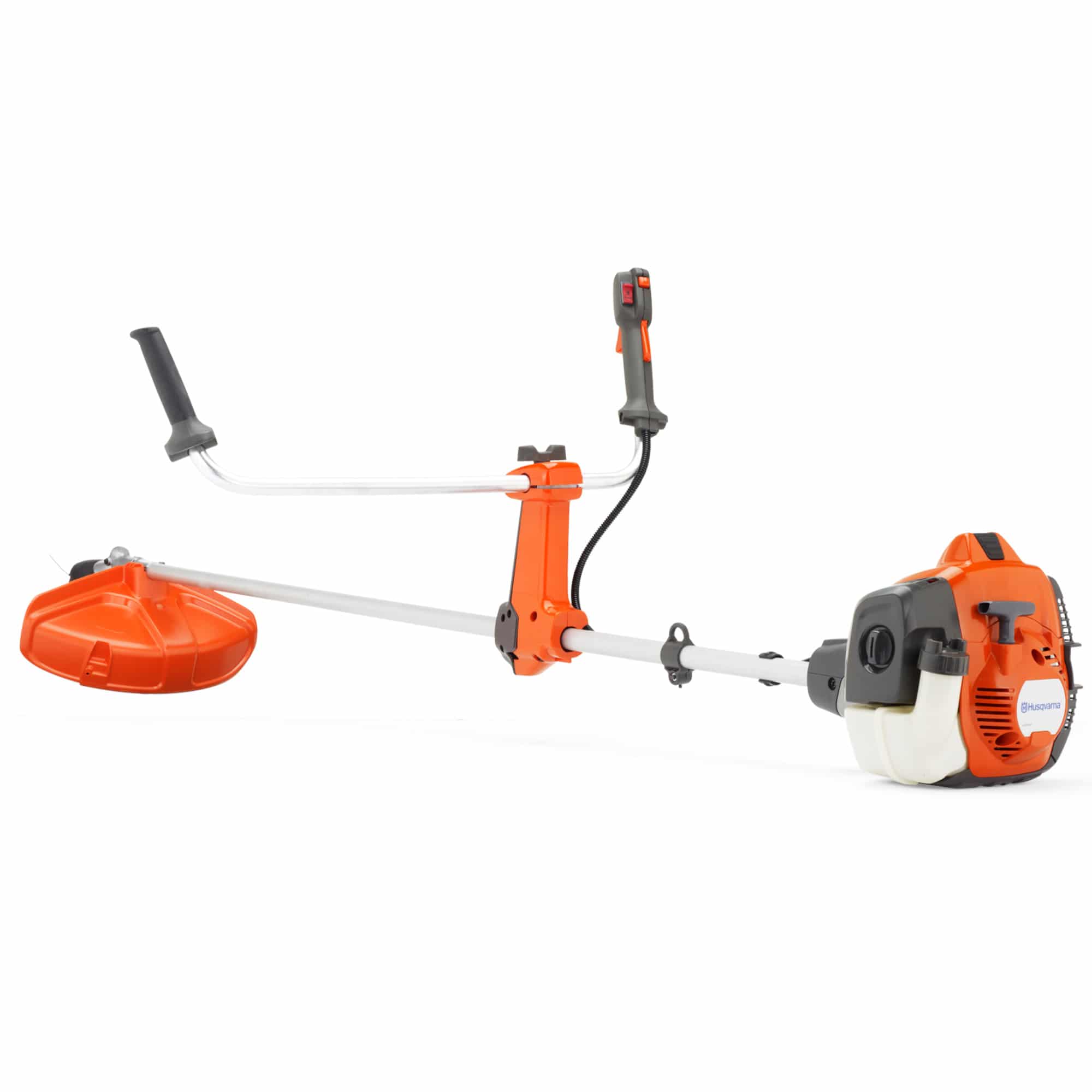

Husqvarna 525RX Brush Cutter
Powerful yet lightweight and comfortable brushcutter. Tough on grass and undergrowth, easy on you.
Features
- Cylinder displacement 25.4 см³
- Weight (excl. cutting equipment) 4.9 kg
- OEM Harness Balance 35
- Equivalent vibration level (ahv, eq) front handle 2.1 m/s²

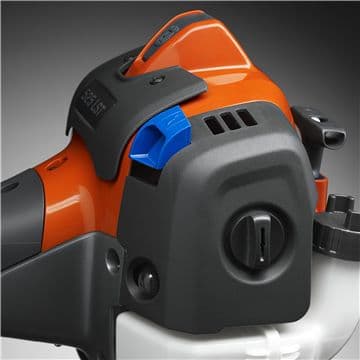

- The choke and purge are easy to reach and understand.

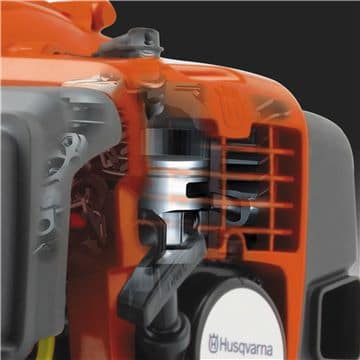

- The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

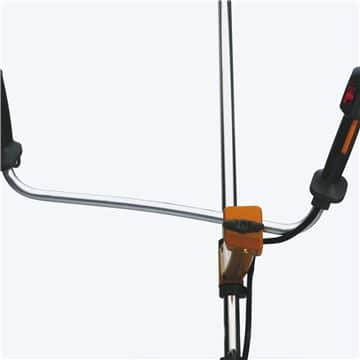

- Angled handlebar and comfort handles provides excellent grip and working position.

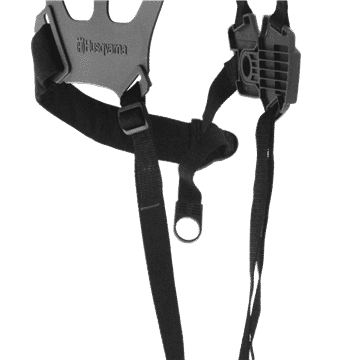

- Ergonomic harness that distribute the load optimally between your shoulders, chest andback.
Specification
- Engine
- Power output 1 kW
- Cylinder displacement 25.4 см³
- Maximum rpm output shaft 6500 rpm
- Maximum power speed 8500 rpm
- Idling speed 3000 rpm
- Clutch engagement speed (±120)4000 rpm
- Torque, max. 1.2 Nm
- Torque, max. at rpm 6000 rpm
- Fuel tank volume 0.51 l
- Fuel consumption 600 g/kWh
- Output shaft thread M10x1.25 Lefthanded
- Spark plug NGK BPMR8Y
- Electrode gap 0.65 mm
- Exhaust emissions (CO2 EU V)1141 g/kWh
- Transmission
- Gear ratio 1.46
- Drive gear angle 30 °
- Dimension
- Weight (excl. cutting equipment) 4.9 kg
- Tube length 1483 mm
- Tube diameter 24 mm
- Equipment
- OEM Grass blade Grass 255-4
- OEM Harness Balance 35
- OEM Trimmer head T35 M10
- Lubricant
- Lubricant Product Type Husqvarna 2 stroke or equiv. at 50:1
- Sound and Noise
- Sound power level, guaranteed (LWA)106 dB(A)
- Sound power level, measured 104 dB(A)
- Sound pressure level at operators ear 93 dB(A)
- Emission
- Exhaust emissions (HC average) 18.82 g/kWh
- Exhaust emissions (CO average) 87.57 g/kWh
- Exhaust emissions (NOx average) 0.56 g/kWh
- Vibration
- Equivalent vibration level (ahv, eq) front handle 2.1 m/s²
- Equivalent vibration level (ahv, eq) rear handle 2.3 m/s²
