Description

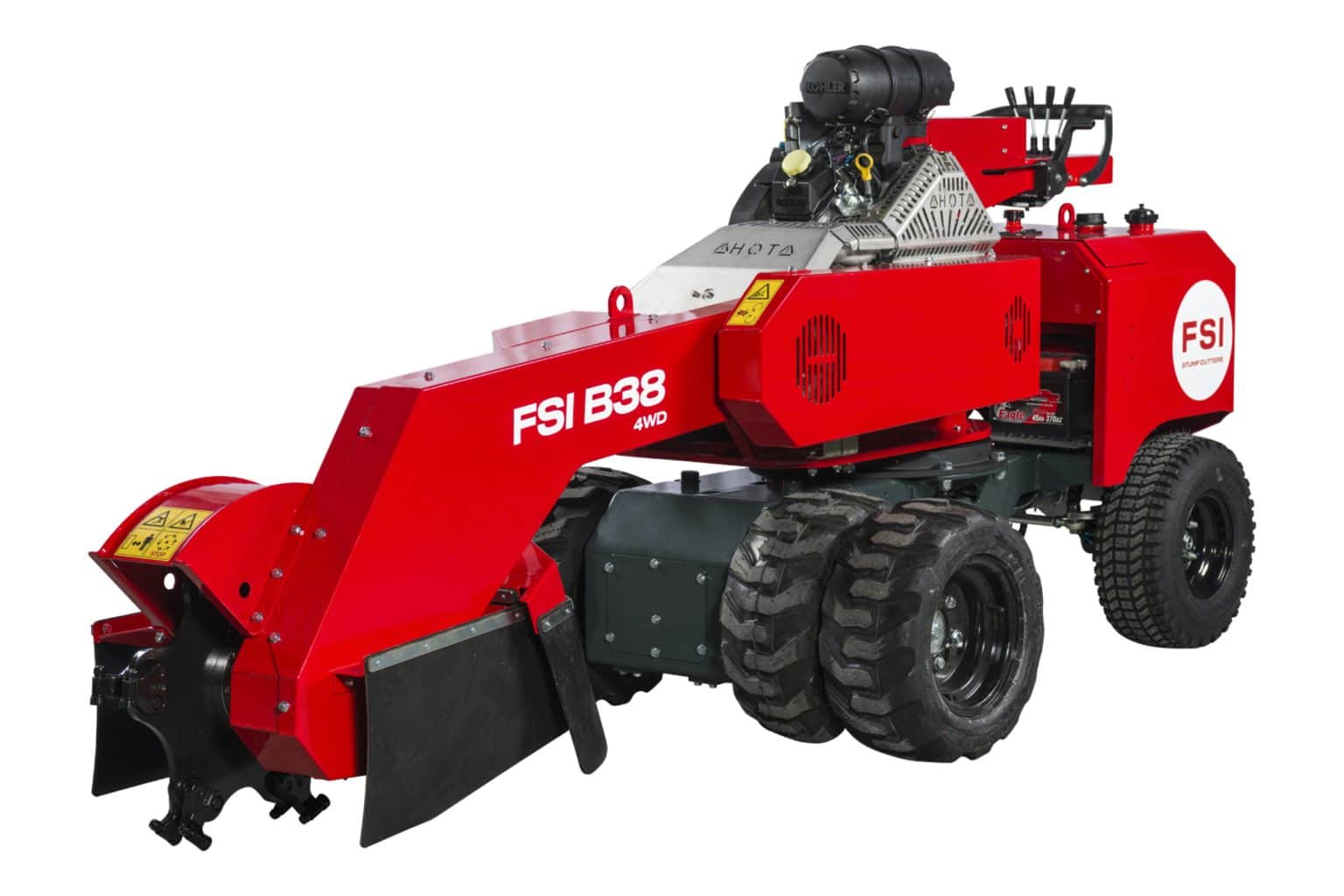

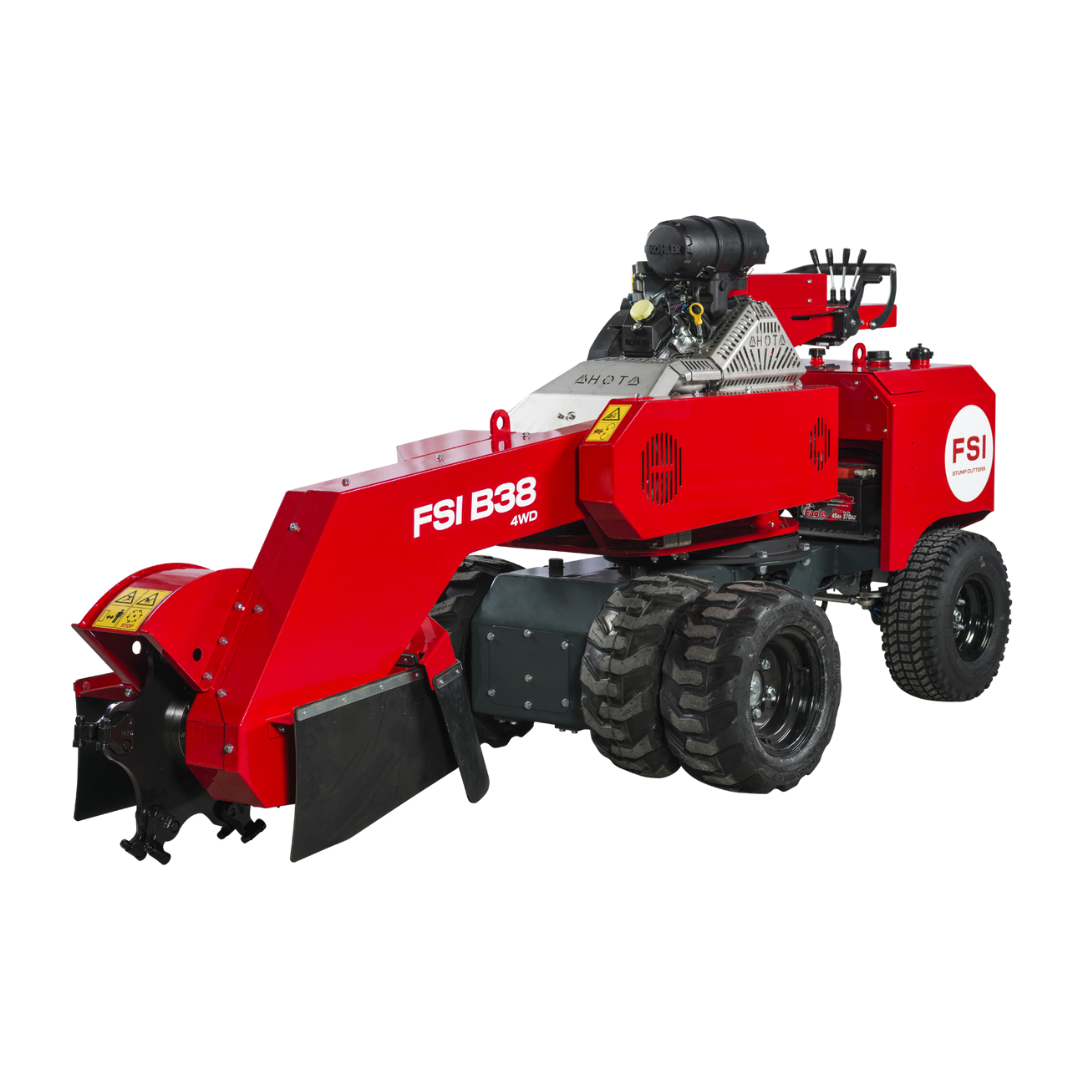

Stump cutter with 38 hp petrol engine and 4WD
• Machine width 79 cm / 31 Inches
• Sweep width 170 cm / 77 Inches
• Cutting depth 44 cm / 17,5 Inches
• Hydraulic 4-wheel drive with diff-lock
• Kohler 38 hp petrol engine
Standard includes:
• FSI power-drive, HI/LO with diff-lock on the front wheels
– HI 2-wheel drive, speed up to 3,5 km/h
– LO 4-wheel drive, double traction force, half speed
• Automatic brakes on the wheels
• Twin wheels with single centre-bolt for easy mounting
• Skid-steer tires on the front axle for optimal ground control
• FSI power clutch. Electric-hydraulic clutch system
with integrated brakes
• FSI power-sweep with auto-pilot for top performence
• Adjustable speed on the swing
• V-belt drive for optimal capacity with a minimum of power loss
• 3 x turnable teeth-system with FSI holders
• FSI power-cut special designed cutting wheel
• Sealed bearinghousing for the cutting wheel – no maintenance
• Integrated points for lashing
• Lifting points for handling with crane
• 90 degr. turnable control panel for optimal view to the
cutting area
• Al controls in one panel
• Safety bar. If the operator leaves the control panel
the cutting wheel will automatically stop
• LED work light
• Hanged and splitted chip protection
• Integrated toolbox
• Tool set for wearing parts
